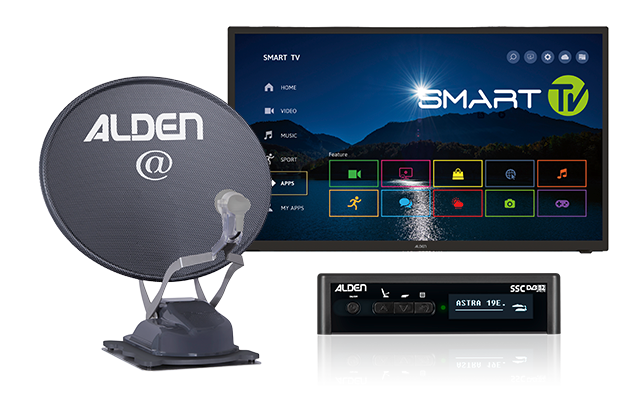

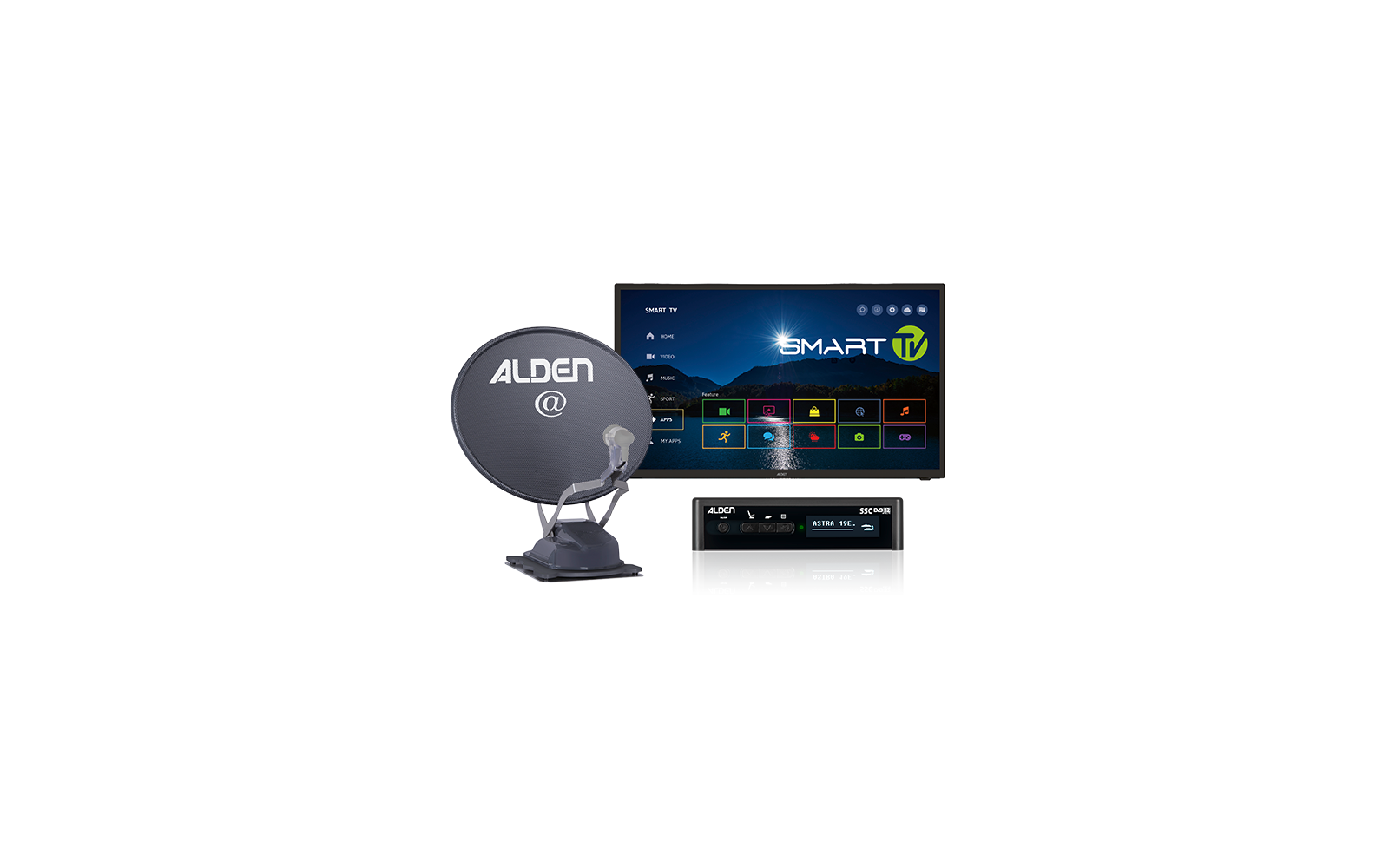

Alden Onelight@ 60 HD EVO Fully Automatic Satellite System Platinium including S.S.C. HD Control Module / LTE Antenna / Smartwide LED TV 19 InchAlden Onelight@ 60 HD EVO Fully Automatic Satellite System Platinium including S.S.C. HD Control Module / LTE Antenna / Smartwide LED TV 22 InchAlden Onelight@ 60 HD EVO Fully Automatic Satellite System Platinium including S.S.C. HD Control Module / LTE Antenna / Smartwide LED TV 24 Inch
Our service
Order hotline
+49 (0)9181 / 330 100Mon. - Sat.: 8:00 - 20:00 hrs
Specialist advice
ARRANGE CALLBACKMon. - Fri.: 9:00 - 16:00 o'clock
Secure payment with SSL encryption
Free return
Up to 5% bonus with the Berger advantage card
Product details
| Fully automatic alignment | Smart function for online services |
| Bluetooth audio transmission | Search method in HD technology |
| Ideal for panel vans | USB player, WiFi, LAN |
Product description
The fully automatic Onelight@ HD EVO with its low installation height of just 15 cm and a weight of just 6.9 kg are two decisive points in favor of using the systems. They offer excellent value for money and have a modern design that integrates seamlessly into the design language of modern motorhomes. The series impresses with fast alignment, low power consumption, a very good reception range and simple operation using a screened offset mirror. It is supplied with a full-surface mounting plate.
Details Onelight@ 60 HD EVO
- Dimensions (L x W x H): approx. 68 x 60 x 15 cm
- Weight: 6.9 kg
- Only 15 cm installation height
- Screened offset mirror
- with LTEasy as standard
The receiver-independent S.S.C. HD control module ensures fast and reliable alignment of the ALDEN antenna. 8 pre-programmed satellites, automatic retraction when the vehicle is started, updates can be carried out easily via USB.
Details S.S.C. HD control module
- Receiver-independent
- Fully automatic alignment of ALDEN antennas
- Each customer can carry out updates (e.g. transponders) themselves
- Adjustment of settings via screen
- Pre-programmed satellites: Astra 19, Astra 23, Eurobird 9, Hotbird 13,
- Thor, Astra 4, Hispasat 30, Astra 28S
- Menu languages: German, English, French, Dutch
- Automatic retraction at vehicle start
- Connections: 12 volt for ALDEN TV, antenna IN / OUT, USB (for service)
- Connection for optional external control panel
- Dimensions (W x H x D): 167 x 11 x 4 cm
- Weight: 0.4 kg
ALDEN Smart TV for the use of streaming services, media libraries, etc. With integrated Bluetooth for transmitting audio signals. Equipped with WIFI / LAN and mirror function for mirroring mobile device content to the TV screen. The wide viewing angle of 178 H / 178 V ensures brilliant picture quality at any installation location in the motorhome.
Details Smartwide LED TV
- Sizes: 19", 22", 24"
- Picture format: 16:9
- Triple tuner: DVB-S2 HD, DVB-T2 HD, DVB-C
- USB player
- Smart function for online services
- Bluetooth audio transmission
- WiFi, LAN
- Mirroring mobile device
- Viewing angle: 178 / 178 (H / V)
- Contrast: 19": 2000:1 / 22": 3000:1 / 24": 3000:1
- Inputs: HDMI, Cinch, USB, Multi-IN
- Brightness: 250 cd/m2
- Outputs: headphones, audio out (coaxial)
- CI+ (Common Interface) for the reception of encrypted channels (pay TV)
- Pixel flawlessness class "0"
- Energy efficiency class: F (G-A)
- Consumption approx. 19": 14 W / 22": 14 W / 24": 17 W
- Operation: 12 Volt (10-17 Volt), 230V possible via optional power supply unit
- Mains switch (0 Watt)
- Dimensions with / without base (WxHxD): 19 inch: 436 x 311 x 170 / 436 x 258 x 42 mm ; 22 inch: 501 x 359 x 170 / 501 x 296 x 42 mm ; 24 inch: 550 x 377 x 170 / 550 x 326 x 42 mm
LTEasy - roof feed-through with integrated LTE antenna
The new ALDEN LTEasy system was developed for all those who value a stable mobile phone connection in their motorhome or caravan in addition to perfect satellite reception. This exclusive and unique solution offers an integrated LTE antenna in the external unit of the satellite antenna. Ideally positioned on the vehicle roof, it ensures the best possible reception of mobile internet. Signal attenuation by the vehicle walls is thus avoided. In combination with a freely selectable LTE router, the full range of functions of the ALDEN Smart TVs can be fully utilized.
Details LTEasy
- LTE-Ready
- Best possible utilization of the mobile signal
- Unique solution
- Works with any LTE router
- Compact design
- No additional roof drilling necessary
- Equipped for the future
- Use the full range of functions of ALDEN Smart TVs
- Telephone module: 4G (LTE) up to 150 Mbps, 3G - up to 42 Mbps, 2G up to 236.8 Kbps
- Frequency range: 617-960 / 1700-2690 / 3300-3800 / 4400-4900 Mhz
- Antenna connectors: 1 x SMA for LTE
- Dimensions: L x W x H (cm) approx. 16 x 6.7 x 5.3
Features
| Type of satellite system | Set |
| Design | Onelight@ 60 HD EVO with S.S.C. module / LTE antenna / Smartwide LED TV 19" |
| Colour | gray |
| Receiver-dependent | - |
| Screen format | 16:9 |
| Display diagonal | 19 " |
| Television weight | 1,87 kg |
| Mirror size | 60 cm |
| Bluetooth | |
| Weight | 6,9 kg |
| Satellite system dimensions (WxHxD) | 60 x 15 x 68 cm |
| Manufacturer Article No. | ON@60-E-G30-S19 |
Features
| Type of satellite system | Set |
| Design | Onelight@ 60 HD EVO with S.S.C. module / LTE antenna / Smartwide LED TV 22" |
| Colour | gray |
| Receiver-dependent | - |
| Screen format | 16:9 |
| Display diagonal | 22 " |
| Television weight | 2,28 kg |
| Mirror size | 60 cm |
| Bluetooth | |
| Weight | 6,9 kg |
| Satellite system dimensions (WxHxD) | 60 x 15 x 68 cm |
| Manufacturer Article No. | ON@60-E-G30-S22 |
Features
| Type of satellite system | Set |
| Design | Onelight@ 60 HD EVO with S.S.C. module / LTE antenna / Smartwide LED TV 24" |
| Colour | gray |
| Receiver-dependent | - |
| Screen format | 16:9 |
| Display diagonal | 24 " |
| Television weight | 2,78 kg |
| Mirror size | 60 cm |
| Bluetooth | |
| Weight | 6,9 kg |
| Satellite system dimensions (WxHxD) | 60 x 15 x 68 cm |
| Manufacturer Article No. | ON@60-E-G30-S24 |
