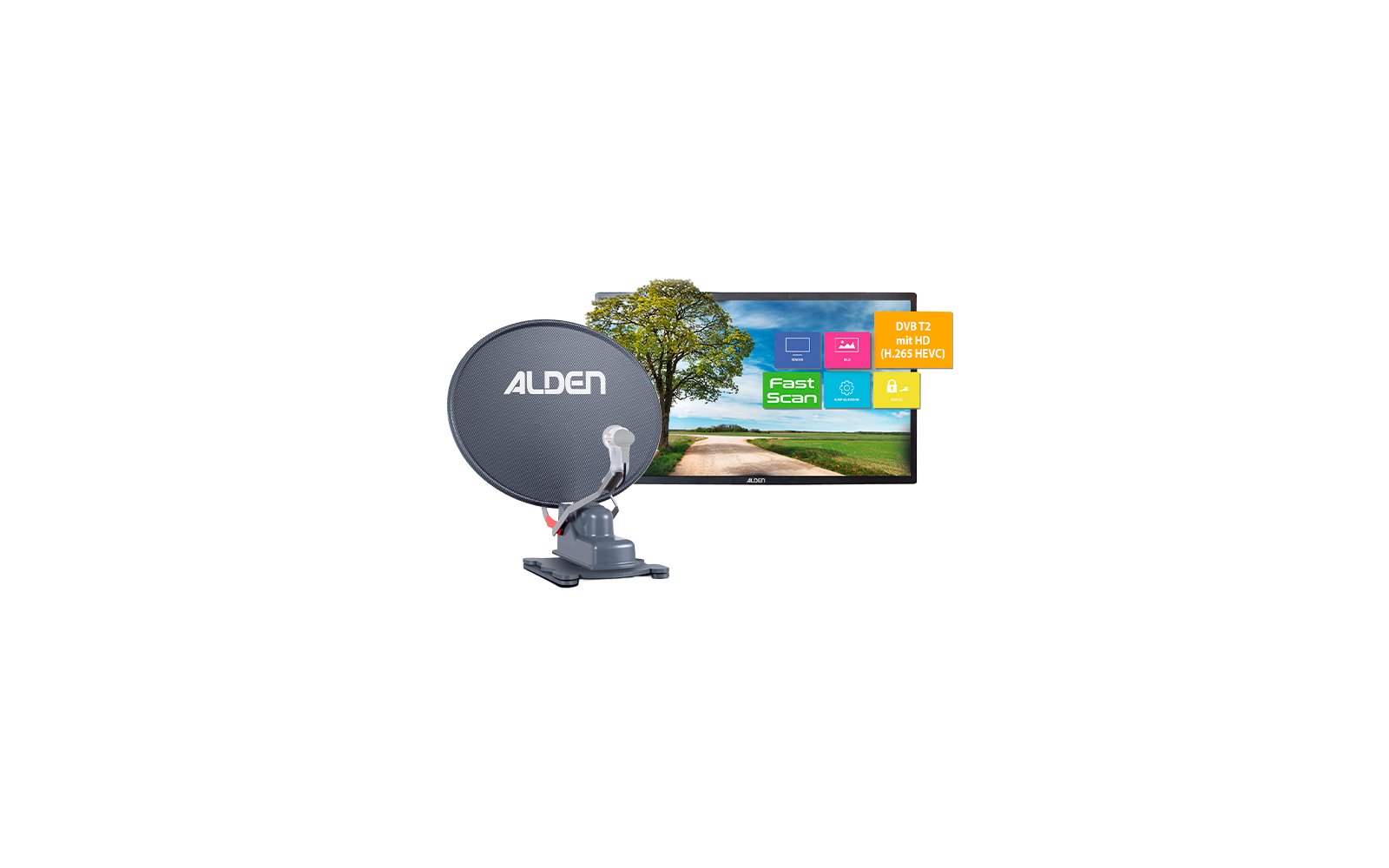

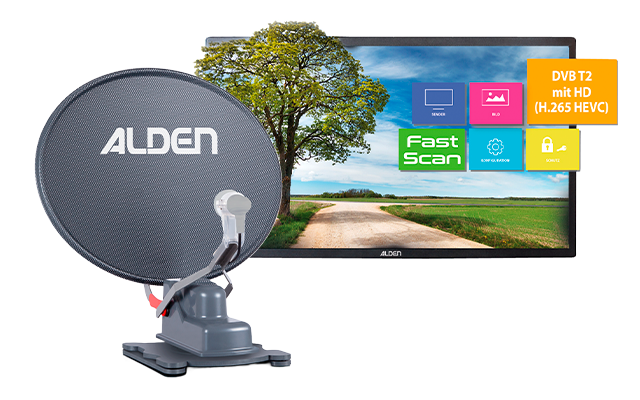

Alden Onelight 60 HD EVO Platinum Automatic Satellite System with Ultrawide LED TV 24”Alden Onelight 60 HD EVO Platinum Automatic Satellite System with Ultrawide LED TV 24”
Availability:
Available in 3-4 working days
Availability:
Available in 3-4 working days
Our service
Order hotline
+49 (0)9181 / 330 100Mon. - Sat.: 8:00 - 20:00 hrs
Specialist advice
ARRANGE CALLBACKMon. - Fri.: 9:00 - 16:00 o'clock
Secure payment with SSL encryption
Free return
Up to 5% bonus with the Berger advantage card
Product details
| Europe's No. 1 | Compact and 6.9 kg light |
| Excellent reception range | Low power consumption |
Product description

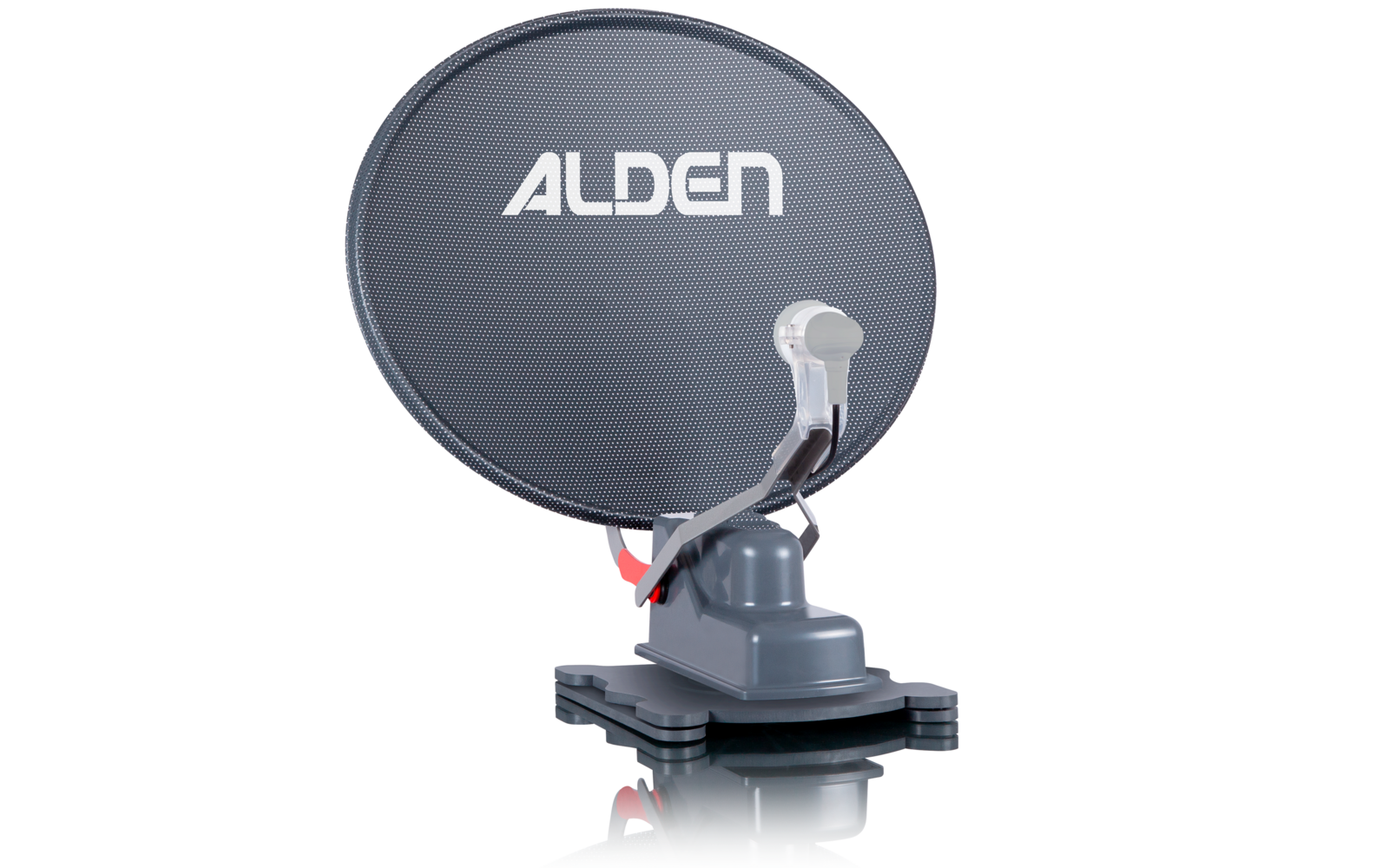

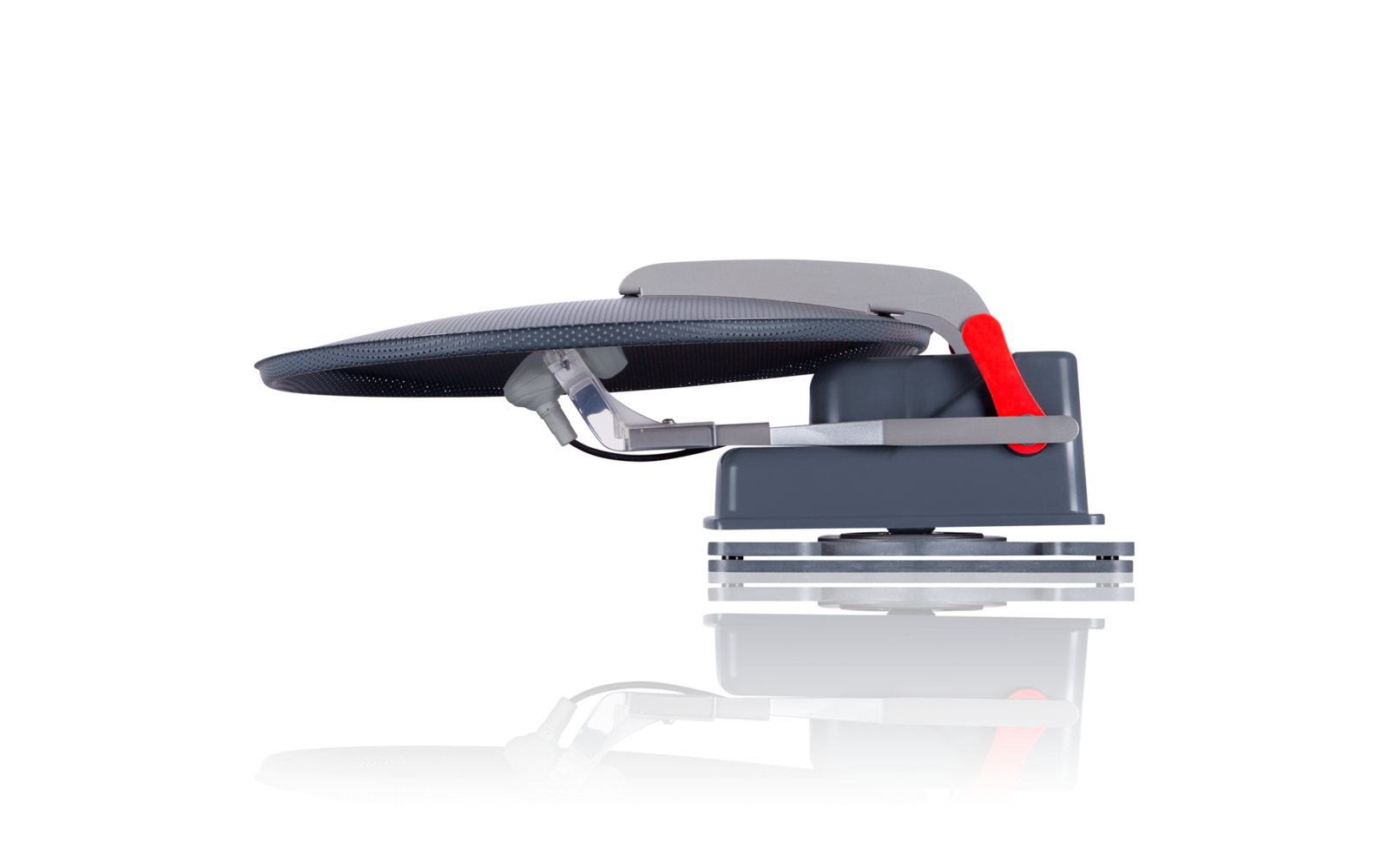

Onelight HD - Europe's No. 1
The fully automatic Onelight HD are satellite systems in high ALDEN quality. They have an excellent price-performance ratio and are appealing with their modern design, which isdesign, which fits seamlessly into the design language of current mobile homes. The small space requirement and the weight of only 6.9 kilograms for the lightest model variant are two further plus points of the Onelight HD series. The systems impress with low power consumption, fast alignment and a very good reception range with simple operation. The Onelight 60 HD model variant is also equipped with a platinium mirror.
Thanks to optimal dimensions (L x W x H in cm: approx. 63 x 60 x 21), the Onelight HD models are characterized by their small footprint. Of course, this is also positively reflected in the weight.

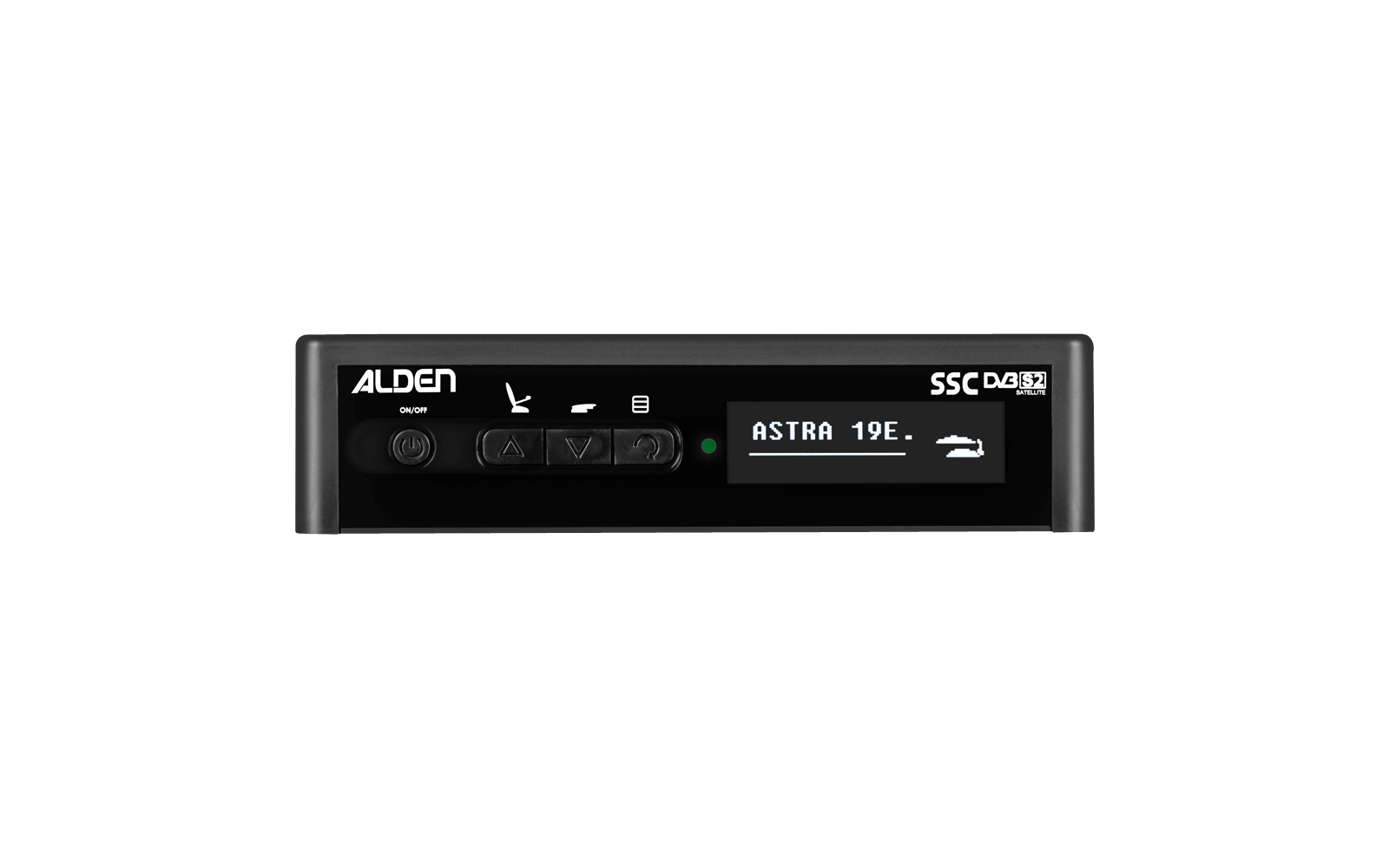

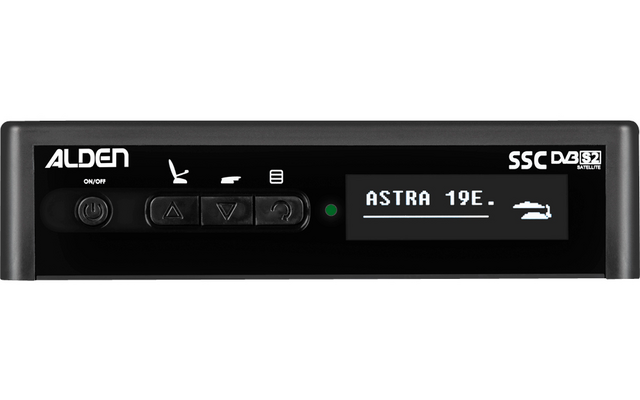

S.S.C.® HD control module
System is aligned fully automatically (receiver-independent). To adjust the operating parameters, a practical display joins the control buttons of the module. Apart from that, it is possible to perform the alignment of the antenna in combination with an ALDEN TV. The search process is carried out in the S.S.C.® HD control module using the modern HD method. The module was developed for mobile 12V on-board power supplies and tolerates fluctuations of 10-17 volts. A total of four menu languages are available: English, French, German and Dutch. A USB-based update system facilitates updates of the operating software and transponders.
Features

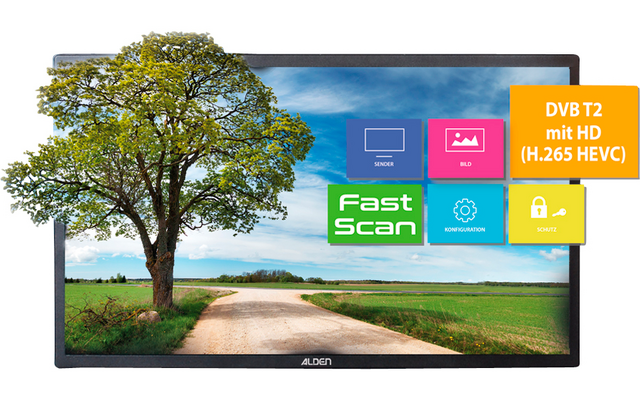

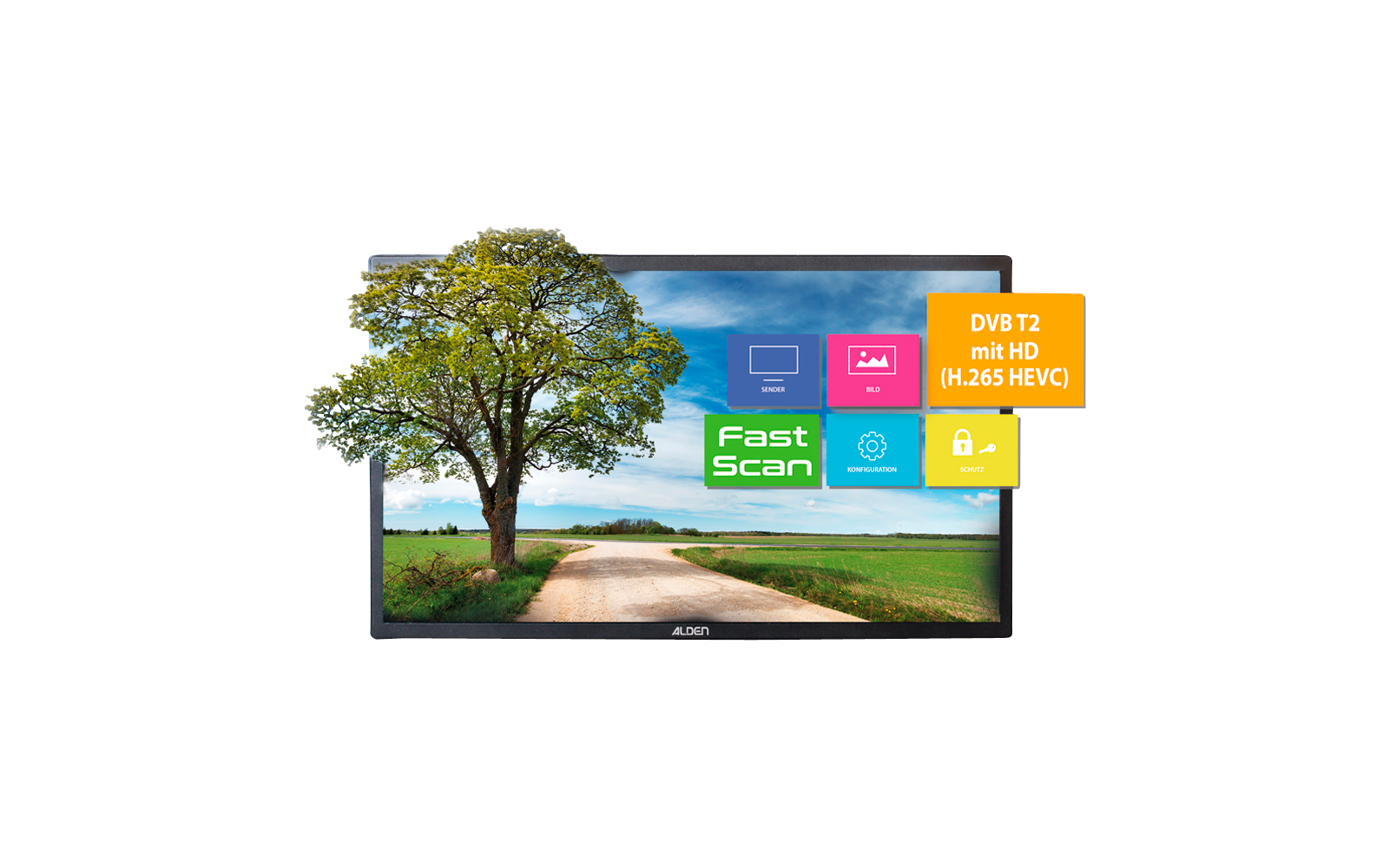

ULTRAWIDE TV
Huge viewing angle
Ultra-slim TV in 16:9 format, which attracts attention with low power consumption and a huge viewing angle (178 H / 178 V). It has pixel class 0 and offers full HD resolution (22" / 24"). Among other things, the devices of the ULTRAWIDE LED TV series are equipped with DVD player, USB port, integrated triple tuner and convenient power switch. The device is available in three screen sizes: 18.5" (47cm), 22" (55cm) and 24" (60cm).
The ULTRAWIDE series offers a very wide viewing angle (178 H / 178 V). This results in brilliant picture quality and excellent depth of field, regardless of the mounting location within the motorhome. The integrated triple tuner (DVB-S2 HD, DVB-T2 HD and DVB-C) has a wide range of applications and receives digital standard as well as HD television programs in the highest quality.
Connection options and power requirements
The new development impresses with integrated DVD and USB players. HDMI, Cinch, RGB, Scart, audio out as well as headphone connections are also part of the equipment. Also on a CI+ (Common interface) for the receipt of coded transmitters as well as on videotex and electronic program guides (EPG) does not have to be renounced. All common satellites are already pre-programmed. With a record-breaking low power consumption of about 16 watts and the power switch (0 watts), nothing stands in the way of a long TV evening with the best picture quality.
Features:
The fully automatic Onelight HD are satellite systems in high ALDEN quality. They have an excellent price-performance ratio and are appealing with their modern design, which isdesign, which fits seamlessly into the design language of current mobile homes. The small space requirement and the weight of only 6.9 kilograms for the lightest model variant are two further plus points of the Onelight HD series. The systems impress with low power consumption, fast alignment and a very good reception range with simple operation. The Onelight 60 HD model variant is also equipped with a platinium mirror.
- Excellent price-performance ratio
- Compact and 6.9 kg light
- Fast alignment
- Very good reception range
- Simple operation
- Low power consumption
- Available with SKEWmatic
- Platinium mirror
Thanks to optimal dimensions (L x W x H in cm: approx. 63 x 60 x 21), the Onelight HD models are characterized by their small footprint. Of course, this is also positively reflected in the weight.
S.S.C.® HD control module
System is aligned fully automatically (receiver-independent). To adjust the operating parameters, a practical display joins the control buttons of the module. Apart from that, it is possible to perform the alignment of the antenna in combination with an ALDEN TV. The search process is carried out in the S.S.C.® HD control module using the modern HD method. The module was developed for mobile 12V on-board power supplies and tolerates fluctuations of 10-17 volts. A total of four menu languages are available: English, French, German and Dutch. A USB-based update system facilitates updates of the operating software and transponders.
Features
- Control (align) via ALDEN LED TV (TV optional) possible
- State of the art search method in HDTV technology
- Receiver independent
- Preprogrammed satellites: Astra 19, Astra 23, Hotbird 13, THOR 0.8 W, Sirius, ASTRA 4.8A, Hispasat, Atlantic Bird, ASTRA 28° E NO / SO and many more
- Connections: USB (for update) 12 Volt for Alden TVs, Antenna IN / OUT, TV
- Information display
- Connection for external control panel
- Automatic retraction at vehicle start
- Power switch for complete shutdown
- Operation 12 Volt (10 - 17 Volt)
- Consumption approx. in operation: 0,3 A (4 Watt) / Standby: 0,03 A (0,4 Watt)
- Dimensions (L x W x H): 17 x 11 x 4 cm
ULTRAWIDE TV
Huge viewing angle
Ultra-slim TV in 16:9 format, which attracts attention with low power consumption and a huge viewing angle (178 H / 178 V). It has pixel class 0 and offers full HD resolution (22" / 24"). Among other things, the devices of the ULTRAWIDE LED TV series are equipped with DVD player, USB port, integrated triple tuner and convenient power switch. The device is available in three screen sizes: 18.5" (47cm), 22" (55cm) and 24" (60cm).
- Ultra slim 16:9 screen
- Huge viewing angle: 178 H / 178 V
- Pixel class 0
- Full HD resolution
- Low power consumption
- DVD and USB player
- Integrated triple tuner
- Power switch
The ULTRAWIDE series offers a very wide viewing angle (178 H / 178 V). This results in brilliant picture quality and excellent depth of field, regardless of the mounting location within the motorhome. The integrated triple tuner (DVB-S2 HD, DVB-T2 HD and DVB-C) has a wide range of applications and receives digital standard as well as HD television programs in the highest quality.
Connection options and power requirements
The new development impresses with integrated DVD and USB players. HDMI, Cinch, RGB, Scart, audio out as well as headphone connections are also part of the equipment. Also on a CI+ (Common interface) for the receipt of coded transmitters as well as on videotex and electronic program guides (EPG) does not have to be renounced. All common satellites are already pre-programmed. With a record-breaking low power consumption of about 16 watts and the power switch (0 watts), nothing stands in the way of a long TV evening with the best picture quality.
Features:
- Sizes: 18.5" ( 47 cm), 22" (56 cm), 24" (60 cm)
- Aspect ratio: 16:9
- DVD Player, USB Player
- Triple tuner: DVB-S2 HD, DVB-T2 HD, DVB-C
- Viewing angle: 178 / 178 (H / V)
- Contrast: 3000:1
- Low power consumption
- Power switch (0 watts)
- Pixel class "0
- Consumption standby: < 0.5 watts
- 230V operation via power supply (optional)
- Inputs: HDMI, Cinch, Scart, USB
- Outputs: Headphone, Audio Out (Coaxial)
- CI+ (Common Interface) for the reception of encrypted channels (Pay-TV)
- Operation: 12 Volt (10 - 17 Volt)
- Preparation for VESA holder
- I-Sound-Ready
Features
| Type of satellite system | Satellite dish |
| Bluetooth | |
| Colour | Platinium |
| Weight | 6,9 kg |
| Screen format | 16:9 |
| Television height | 27 cm |
| Receiver-dependent | - |
| Mirror size | 60 cm |
| Television width | 44 cm |
| Display diagonal | 19 " |
| Television weight | 2,5 kg |
| Total weight | 8,8 kg |
| Television depth | 6,5 cm |
| ean | 2003564300003 |
| Manufacturer Article No. | ON60-G30-185DT |
Features
| Type of satellite system | Satellite dish |
| Bluetooth | |
| Colour | Platinium |
| Weight | 6,3 kg |
| Screen format | 16:9 |
| Television height | 33 cm |
| Mirror size | 60 cm |
| Television width | 55 cm |
| Display diagonal | 24 " |
| Television weight | 3,5 kg |
| Total weight | 9,8 kg |
| Television depth | 6,5 cm |
| ean | 2003564600004 |
| Manufacturer Article No. | ON60-G30-240DT |
